SPA4300-FM01_Zhejiang GT Lasers Tech. Co., Ltd.

SPA4300-FM01 is a full-function single channel Pre-Amplifier EDFA module with digital control electronics, adopts subminiature 40×70×12mm compact package, combined with artistic package and best optic performance, creating the best flexible and variable low-cost amplifier in the market. This module is suitable for multiple network application, especially the application that requires 40GB/S transmission speed.

SPA4300-FM01 full-function fiber optical amplifier module , uses high performance non-cooling pump laser, adopts the standard version of single channel and narrow bandwidth. A standard 6-PIN electric connector (HIROSE DF11-6DP-2DSA) allows the simple electric connection.

SPA4300-FM01 full-function Pre-Amplifier EDFA module, main installed before the receiver to improve receiver sensitivity and extend signal transmission distance.

◉ With Digital Control Electronics ( Full Functiion )

◉ APC,ACC mode

◉ RS-232 standard communication interface, (Optional I2C )

◉ 15dB, 20dB, 25dB, 30dB, Gain optional

◉ Small form factor package (40×70×12mm)

◉ Low power consumption

◉ Low cost

◉ Wide operating temperature range

◉ Metropolitan and access networks

◉ CATV

◉ Single-channel or DWDM sub-systems

◉ Optical Add/Drop and Cross-Connects

◉ Optical receiver power amplification

◉ Power equalization and flexible pre-emphasis

Performance					Min.	Typ.	Max.
Optic feature	Operating wavelength range			(nm)	1528		1564
	Input optical power (Pin)			(dBm)	-30		-10
	Signal gain @ Pin = - 30dBm		SPA4315-FM01	(dB)	15
			SPA4320-FM01		20
			SPA4325-FM01		25
			SPA4330-FM01		30
	Noise figure@Pin=-30dBm			(dB)		4.0	4.5
	Polarization dependent gain (PDG)			(dB)			0.3
	Polarization mode dispersion (PMD)			(ps)			0.3
	Polarization dependent loss(PDL)			(dB)			0.3
	Pump power leakage			(dB)			-30
	Output & input isolation			(dB)	30
	Return loss	UPC		(dB)	45
	Return loss	APC		(dB)	55
	Fiber type				SMF-28, 900μm loose tube
	Connector type				LC,SC, FC,
	Connector polish				UPC, APC
General feature	Communication interface				RS232
	Power supply voltage			(V)	3.1	3.3	3.5
	Power consumption			(W)		1.0
	Operating temp.			(°C)	-5		70
	Store temp.			(°C)	-40		+85
	Relative humidity			(%RH)	+5		+95
	Size(W) × (L) × (H)			(mm)	40× 70 × 12

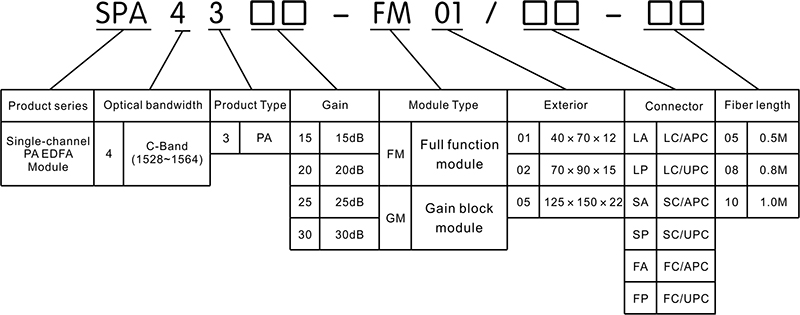

Model	Gain (dB) (Pin=-30dBm)	Output power (dBm) (Pin=-30dBm)	Noise figure (dB)
SPA4315-FM01	15	-15	<4.5
SPA4320-FM01	20	-10	<4.5
SPA4325-FM01	25	-5	<4.5
SPA4330-FM01	30	0	<4.5
