GT LASERS BG9244x-LD product series have the bandwidth of 47~862MHz,with ALC（AGC）function, two outputs, the output level Vo=104dBμV （Pin:-7~+2dBm, APD=8dB）. The device has built-level gain and equalization adjustment, visual display about optical power, and can choose 1way or 2 ways high level output by illustration. It applies to FTTB optical access to network, is an ONU optical receiver unit of RFTV radio network with low power, high performance, high cost- effective.

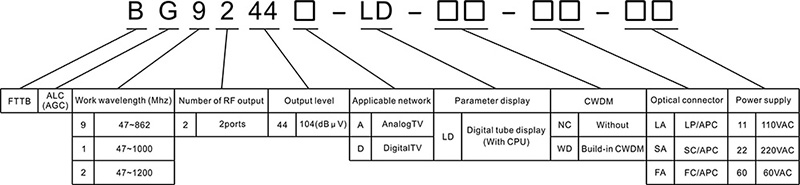

BG9244x-LD has this four types：
BG9244A-LD-NC：operating in 1260~1620nm wavelength，used in CATV system with analog TV channels.
BG9244D-LD-NC：operating in 1260~1620nm wavelength，used in CATV system with analog TV channels.
BG9244A-LD-WD：built-in CWDM,RFTV operation wavelength 1550nm,pass wavelength 1310/1490nm,(links EPON、GPON ONU).
BG9244D-LD-WD：Built-in CWDM,RFTV operation wavelength 1550nm,pass wavelength 1310/1490nm,(links EPON、GPON ONU).
