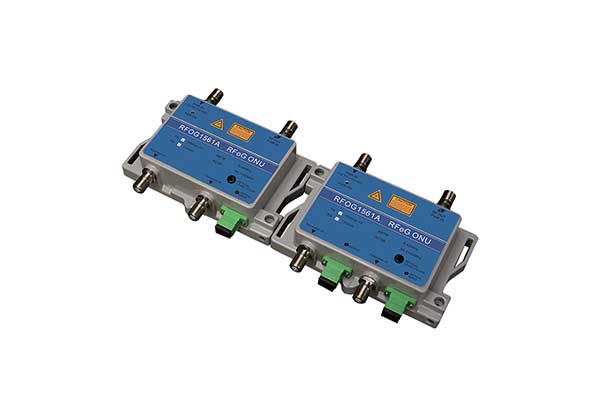

RFoG1000

RFoG1000 series RFoG ONU, adopts Passive Optical distribution Network (PON) to realize bi-directional, interactive RF business. In FTTH network, it serves to transmission layer of RF video, DAVIC, DOCSIS, extending the optical network to home or building without the need of adjacent HFC optical node. Saving lots of RF amplifier, thus, it can improve the quality and stability of network operation.

RFoG1000 uplink channels adopts burst mode, which can largely reduce the Funneling noise at uplink channels and improve stability of network operation.

RFoG1600 uplink adopts 1610nm wavelength, RFoG1900 uplink adopts 1590nm wavelength. Compatible with any FTTx PON technique, realize Triple-play. Built-in CWDM is optional, through 1310nm/1490nm and 1610nm (or 1590nm).

RFoG1300 uplink adopts 1310nm wavelength, RFoG1500 uplink adopts 1550nm wavelength which can fully substitute the traditional HFC networks, saving lots of RF amplifiers, thus, it can improve the quality and stability of network operation.

◉ 256 RFoG

◉ FTTH (FTTx PON)
