HA5400B (2RU) series is a high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. It is mainly designed for the application of CATV or 1~8 continuous banding channel (ITU wavelength). It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.
HA5400B optical amplifier adopts the world's top class pump laser and active optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser.
HA5400B has extremely low noise figure, the entire unit adopts twin-stage amplification, and the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of unit is ≤5.5dB Unlike other kind of product which need high optical power input to maintain lower noise figure.
HA5400B LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser.RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of optical amplifier can be installed in the front panel or back panel.
HA5400B optional two-way optical input (built-in 2x1 optical switch), can be used for self-healing ring network or redundant backup network.
HA5400B with carrier-class reliability and network security management, high quality, high reliability and excellent cost performance and is ideal for system integrators and system operator.

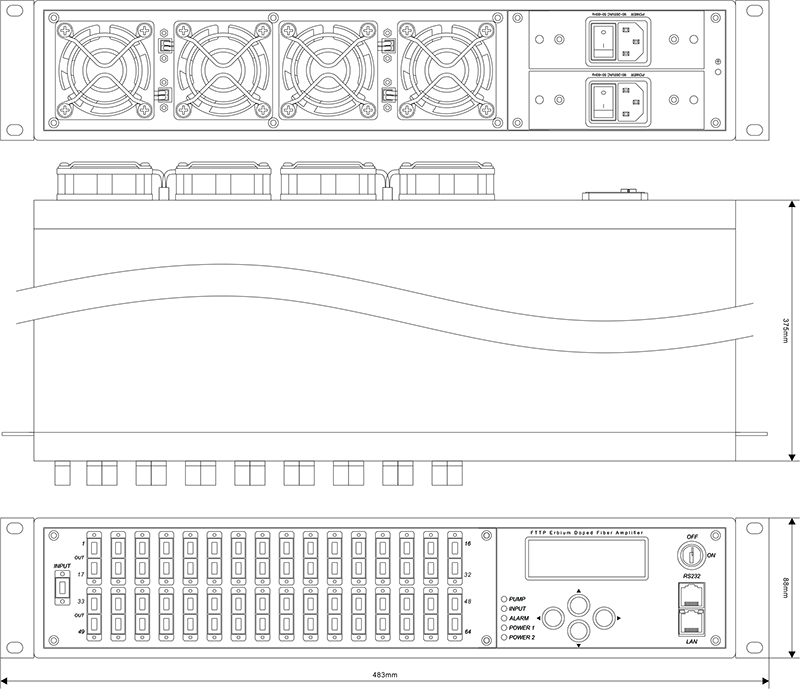

HA5400B :19’’ 2RU rack, The total maximum output power of 41dBm ( 13000mW ), optional output port up to 128 optional port.
