HRS-26S/P|Zhejiang GT Lasers Tech. Co., Ltd.

GT LASERS HRS-26S/P optical receiver, adopting high-sensitivity PIN detector, receiving sensitivity is -22dBm, typical value: -13dBm. It can receive analogue and digital signal on satellite antenna LNB with the frequency of 950~2600MHz, It can be compatible with any FTTx PON to realize combination of Direct Broadcasting Satellite (DBS)with Internet and FTTH, it can also be used for L-Band uplink/downlink of satellite communication.

HRS-26S/P-113-00: adopting 1U 19” standard casing, the working parameters of the unit are controlled by micro-processor. LCD on the front panel can display the working status and failure and diagnosis. Standard RS232 communication interface, SNMP function. It is suitable for project application.

HRS-26S/P-213-00: Desktop, Minimum exterior structure in the area.

HRS-26S/P-313-00: Wall-mounted.

HRS-26S/P-913-00: Rainproof type, suitable for field installation.

HRS-26S/P-213-WD: Desktop, suitable for FTTx PON. Build-in WD1543, un-seamed connection with ONU in EPON, GPON system.

HRS-26S/P-313-WD: Wall-mounted, suitable for FTTx PON. Build-in WD1543, un-seamed connection with ONU in EPON, GPON system.

◉ PIN detector, -22dBm receiving sensitivity, typical value: -13dBm.

◉ 950~2600Mhz high bandwidth, suitable for SAT-IF application.

◉ Receiving all L-BAND satellite signal of LNB over single fiber.

◉ It can be compatible with any FTTx PON technology.

◉ Different exterior structures. Suitable for FTTH, FTTP, FTTB, FTTC.

◉ Excellent P/P ratio.

◉ Satellite L-Band optical fiber building distribution system

◉ Optical fiber distribution system for ocean going vessels

◉ Satellite L-Band up / down fiber optic link

Performance					Index			Supplement
Performance					Min.	Typ.	Max.	Supplement
Optical feature	Operating wavelength			(nm)	1260		1620	HRS-26S/P-×××-00
	Operating wavelength			(nm)	1540		1563	HRS-26S/P-×××-WD
	Pass wavelength			(nm)	1310/1490			HRS-26S/P-×××-WD
	Reasonability		R13	(A/W)	0.9			1310nm
	Reasonability		R15	(A/W)	0.95			1550nm
	Receiving optical power		Typical	(dBm)		-13
			Sensitivity				-22	Pr
			Overload		+3			Po
	Optical receiving PD				PIN
	Return loss			(dB)	50
	Optical connector				SC/APC or LC/APC
RF feature	Working bandwidth			(MHz)	950		2600
	Output level			(dBmV)	10		30
	Flatness			(dB)	-0.5		+0.5	40MHz
	Flatness			(dB)	-1.0		+1.0	950~2400MHz
	Output Return loss			(dB)	12			950~2400MHz
	Channel loading			(CH)			36	QPSK or FM
	IM3			(dB)	-65
	HUM			(dB)	-60
	IP1			(dBm)	18
	output impedance			(Ω)		75		Option 50Ω
	RF connector				F- Female			75Ω
	RF connector				SMA-F			50Ω
General feature	SNMP interface				RJ45			HRS-26S/P-113
	Communication interface				RS232			HRS-26S/P-113
	Power supply	AC		(V)	90	220	265
	Power supply	DC		(V)	-30	-48	-72
	Power consumption			(W)			5	Single PS
	Operating temp.			(℃)	-5		-65
	Storage temp.			(℃)	-40		+85
	Relative humidity			(%)	5		95
	Size			(“)	19 ×14.5×1.75			HRS-26S/P-113
				(mm)	59×98×23			HRS-26S/P-213
					117×72×29			HRS-26S/P-313
					150×135×98			HRS-26S/P-913

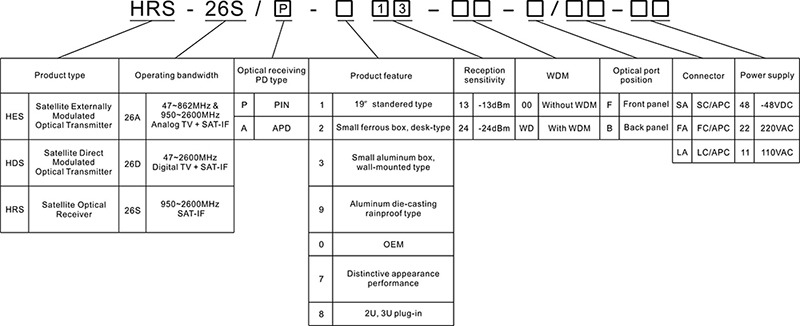

Model	Optical receiving diode type	Typical value of receiving power	Exterior structure	CWDM
HRS-26S/P-113-00	PIN	-13dBm	19” 1RU	None
HRS-26S/P-213-00	PIN	-13dBm	Desktop	None
HRS-26S/P-213-WD	PIN	-13dBm	Desktop	Build-in WDM
HRS-26S/P-313-00	PIN	-13dBm	Wall-mounted	None
HRS-26S/P-313-WD	PIN	-13dBm	Wall-mounted	Build-in WDM
HRS-26S/P-913-00	PIN	-13dBm	Field Rainproof	None
HRS-26S/P-713-00	PIN	-13dBm	High-output MGC	None
