MR22

MR22 series microwave wideband optical receiver, adopts High linear PIN diode and limiting amplifier, within bandwidth of 40KHz~18GHz, they are featured with excellent linearity, high responsibility and superior flatness of the RF response in both, power and phase. They provide an outstanding linearity fiber optical communication for analogue wideband microwave application. Due to avoidance of using expensive coaxial cable or wave-guide, there will be no limitation in transmission distance, which improves the signal quality and reliability of the microwave communication. They can be widely applied in microwave communication system such as remote wireless, timing and reference signal distribution, telemetry, measurement and delay line etc as well as 10Gb/s and 18Gb/s high speed communication system.

MR22 series adopts PIN photodiode, with pre-amplifier, low cost, flexible application in networks.

MR22 Four exterior structures available:

MX: module type, RS232 is an option, suitable for OEM, exterior structure and size of the module as well as the PIN description can be specified by customers.

2D: desk top, with RS232and LCD display, suitable for laboratory use.

1U, 3U: 19" casing, with RS232, SNMP and LCD display, suitable for direct use in networks.

 Antenna Remoting

 Military communications

 Tracking, telemetry and control

 Phased arrays

 Delay lines

 Microwave RF optical links

 High speed lightwave characterization

 10Gb/s, 12.5Gb/s communication systems

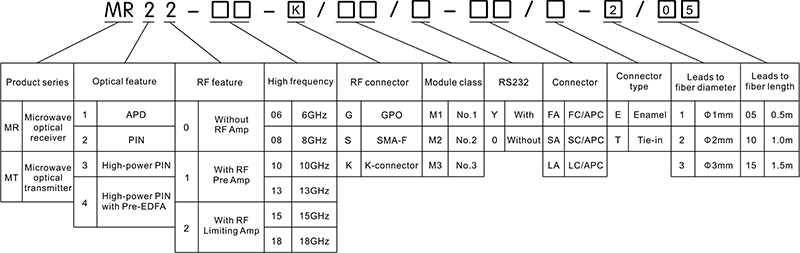

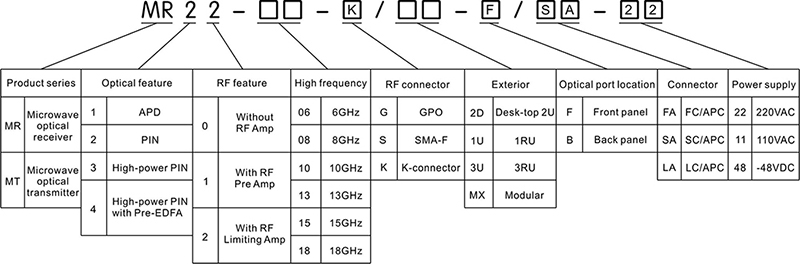

Remark: please refer to ordering information for ordering
