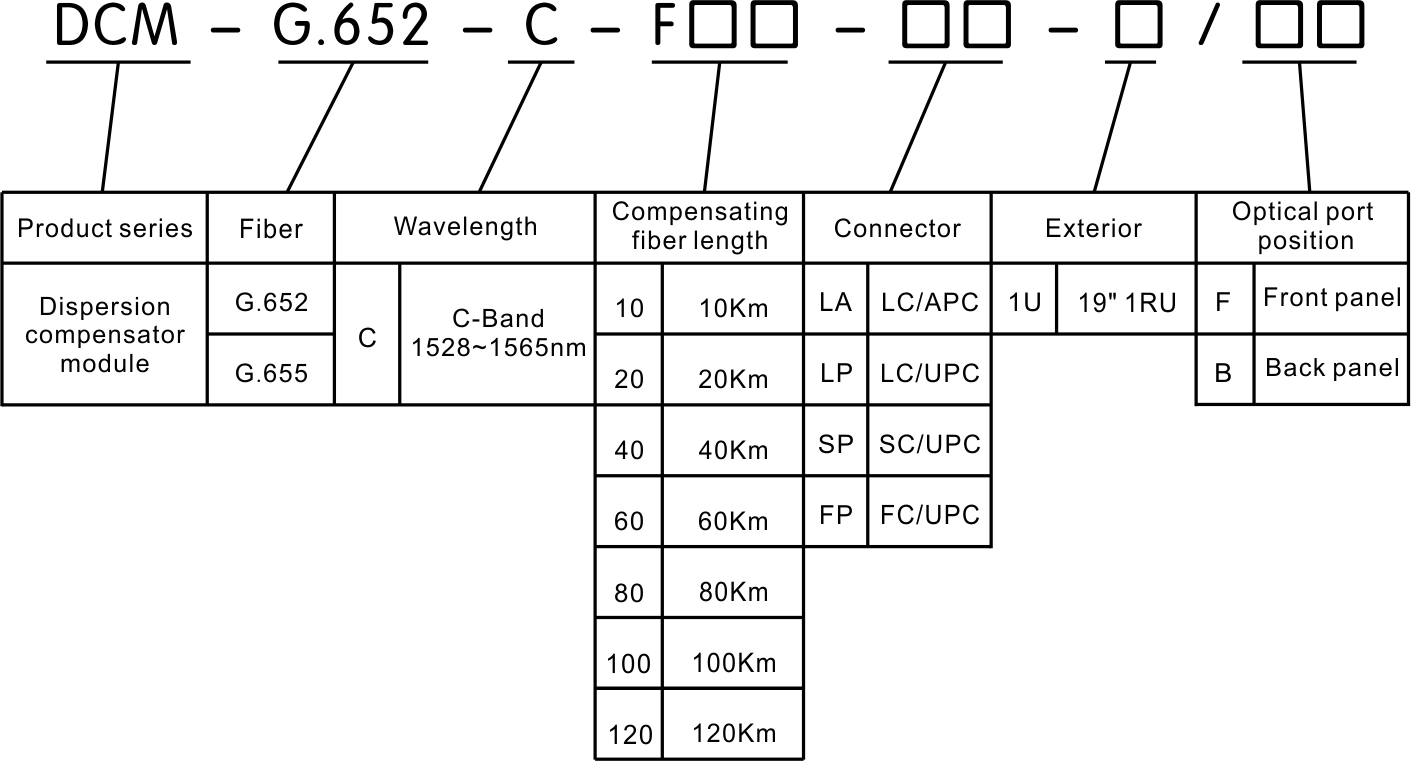

DCM-G.652-C-Fxx

ITU G.652 standard single-mode fiber has dispersion in C-Band, the typical value is 16.6ps/nm Km dispersion. Dispersion limits the transmission distance of 1550nm optical fiber system and the available bandwidth.

There are several methods of optical fiber dispersion compensation. Practice proved that the dispersion compensation fiber module (DCF, DCM) is the method is simple, the most economical, effective. It can not only effectively extra dispersion compensation of standard single mode fiber, dispersion slope compensation can also be 100% standard single mode fiber.

GT LASERS and DCM-G.652-C-Fxx dispersion compensation fiber module, is negative dispersion compensation based on optical fiber technology, can effectively compensate for G.652 standard single-mode fiber transmission band of 1525 ~ 1565nm dispersion and dispersion slope characteristic.

◉ G.652 standard single mode fiber, 1525 ~ 1565nm wavelength range and chromatic dispersion slope compensation

◉ DWDM system in the long distance, the long distance fiber link

◉ CATV long trunk

◉ Long distance optical fiber link, satellite, microwave

Performance			Index			Supplement
			Min.	Typ.	Max.
Operating wavelength		(nm)	1525		1565
Pass power		(dBm)	30
Effectivity area		(m2)		20
Nonlinearity		(n2/Aeff)		1.4×10-9
SBS threshold		(dBm)	+6
Optical connector			SC/APC,LC/APC
Return loss		(dB)			-45
Compensated optical fiber length		(Km)		10		F10
				20		F20
				40		F40
				60		F60
				80		F80
				100		F100
				120		F120
Dispersion Value	1525nm	(ps/nm)	-159		-145	F10
			-315		-293	F20
			-629		-588	F40
			-942		-883	F60
			-1251		-1183	F80
			-1560		-1482	F100
			-1868		-1782	F120
	1545nm	(ps/nm)	-170	-165	-158	F10
			-337	-332	-319	F20
			-673	-664	-640	F40
			-1009	-996	-960	F60
			-1340	-1328	-1280	F80
			-1671	-1660	-1611	F100
			-2001	-1990	-1937	F120
	1565	(ps/nm)	-184		-168	F10
			-364		-340	F20
			-727		-682	F40
			-1090		-1024	F60
			-1448		-1371	F80
			-1805		-1718	F100
			-2162		-2066	F120
Optical fiber insertion loss ( 1525~1565nm )		(dB)		1.2	2.1	F10
				1.8	2.7	F20
				3.2	4.1	F40
				4.5	5.5	F60
				6.0	6.9	F80
				7.4	8.4	F100
				8.8	9.8	F120
Residual dispersion slope		(nm-1)	0.00299	0.00360	0.00421
Polarization dependence loss		(dB)		0.1
Wavelength dependence loss ( 1530nm~1565nm )		(dB)			0.5	F10
					0.6	F20
					0.6	F40
					0.7	F60
					0.8	F80
					0.8	F100
					0.9	F120
Polarization Mode Dispersion (PMD)		(ps)		0.1	0.3	F10
				0.2	0.4	F20
				0.2	0.5	F40
				0.2	0.6	F60
				0.3	0.7	F80
				0.3	0.8	F100
				0.3	0.8	F120
Dispersion Optical Fiber Length		(Km)	0.85	1.0	1.2	F10
			1.7	2.0	2.4	F20
			3.5	4.1	4.8	F40
			5.2	6.1	7.2	F60
			7.0	8.1	9.6	F80
			8.5	10.2	11.5	F100
			10.2	12.3	13.8	F120
Operating Temp.		( ℃ )	-5		+70
Store Temp.		( ℃ )	-40		+85
Operating humidity		(%)	0		85
Store humidity		(%)	0		85
Size (W)×(D)×(H)		(mm)	483×279×44
