DWDM-0500

DWDM series is based on mature thin film filtering technology and adopt metal sealing technology to encapsulate. It has the feature of flat channel bandwidth, flexible channel configuration, low insert loss and high isolation. The flexibility of channel configuration and modularized design make it convenient for system upgrading and expanding. All the Huatai products have no epoxy glue in optical line and can be used in high power optical communication system.

DWDM-0500M: 50GHz (0.4nm) Mux.

DWDM-0500D: 50GHz (0.4nm) Demux.

◉ Main trunk DWDM system

◉ MAN DWDM system

◉ Laboratory application

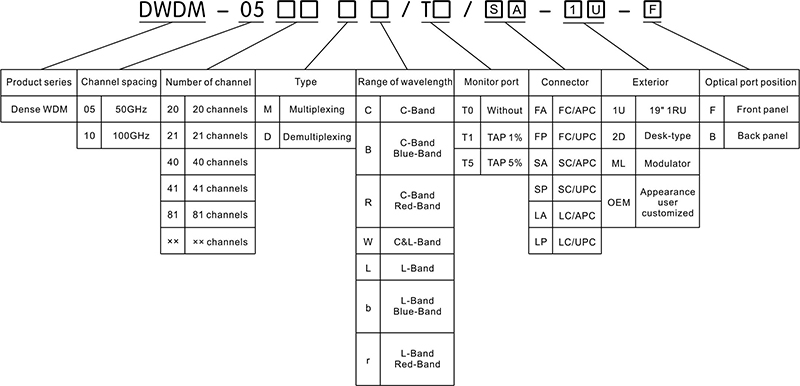

Model number	Mux/Demux	Channel spacing	Wavelength	Number of channel	Channel configuration
DWDM-0521MB	Mux	50GHz	C-Band Blue-Band	21	H58~H38
DWDM-0521DB	Demux
DWDM-0520MR	Mux	50GHz	C-Band Red-Band	20	H37~H18
DWDM-0520DR	Demux
DWDM-0541MC	Mux	50GHz	C-Band	41	H58~H18
DWDM-0541DC	Demux
DWDM-5020Mb	Mux	50GHz	L-Band Blue-Band	20	H09~Q90
DWDM-0520Db	Demux
DWDM-0520Mr	Mux	50GHz	L-Band Red-Band	20	Q89~Q70
DWDM-0520Dr	Demux
DWDM-0540ML	Mux	50GHz	L-Band	40	H09~Q70
DWDM-0540DL	Demux
DWDM-0581MW	Mux	50GHz	C & L-Band	81	H58~Q70
DWDM-0581DW	Demux
