WD1616/R, WD1616/B|Zhejiang GT Lasers Tech. Co., Ltd.

WD1616/R, WD1616/B is based on mature thin film filtering tech, with wide bandwidth, flatness, low insertion loss and high isolation. It is mainly applied to the combination and separation of L-Band, Red-Band (1589~1603nm) and Blue-Band (1570~1584nm).

WD1616/R: Red-Band Pass.

WD1616/B: Blue-Band Pass.

◉ Low insertion loss

◉ High channel isolation

◉ High pass band flatness

◉ High stability and reliability

◉ Optical link without epoxy glue

◉ Optical fiber amplifier

◉ System monitor

◉ Optical fiber instrument

◉ Laboratory R&D

Performance			Index			Supplement
Performance			Min.	Typ.	Max.	Supplement
Transmission channel wavelength range		(nm)	1570		1584	WD1616/B
Transmission channel wavelength range		(nm)	1589		1603	WD1616/R
Reflection channel wavelength range		(nm)	1570		1584	WD1616/R
Reflection channel wavelength range		(nm)	1589		1603	WD1616/B
Insertion loss	Transmission channel	(dB)			0.6
Insertion loss	Reflection channel	(dB)			0.4
Isolation	Transmission channel	(dB)	30
Isolation	Reflection channel	(dB)	13
Pass band rippling		(dB)			0.3
Directivity		(dB)	50
Return loss		(dB)	50
Polarization mode dispersion		(ps)			0.05
Polarization dependent loss		(dB)			0.1
Power handling		(mW)			500
Operating temp.		(℃)	-10		+70
Storage temp.		(℃)	-40		+85
Optical fiber type			SMF-28e with 900μm loose tube
Optical fiber connector			SC/APC
Size		(mm)	Φ5.5×34			S
Size		(mm)	89×51×8			M

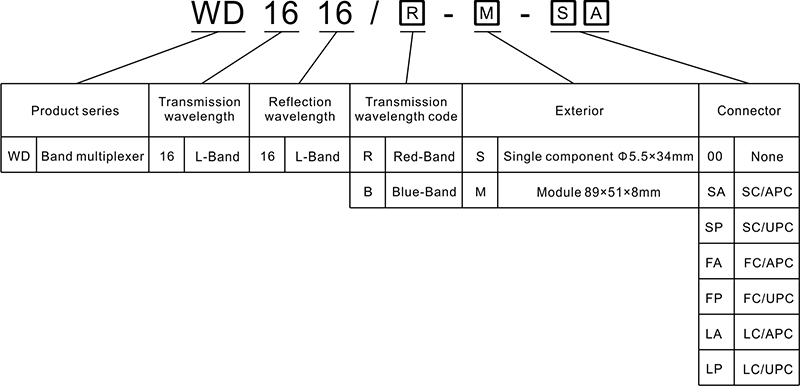

Model number	Transmission band	Reflection band	Exterior	Connector	Supplement
WD1616/R-S-00	L/Blue-Band	L/Red-Band	Φ5.5×34	None
WD1616/R-M-SA	L/Blue-Band	L/Red-Band	89×51×8	SC/APC	FC/APC optional
WD1516/B-S-00	L/Red-Band	L/Blue-Band	Φ5.5×34	None
WD1516/B-M-SA	L/Red-Band	L/Blue-Band	89×51×8	SC/APC	FC/APC optional
