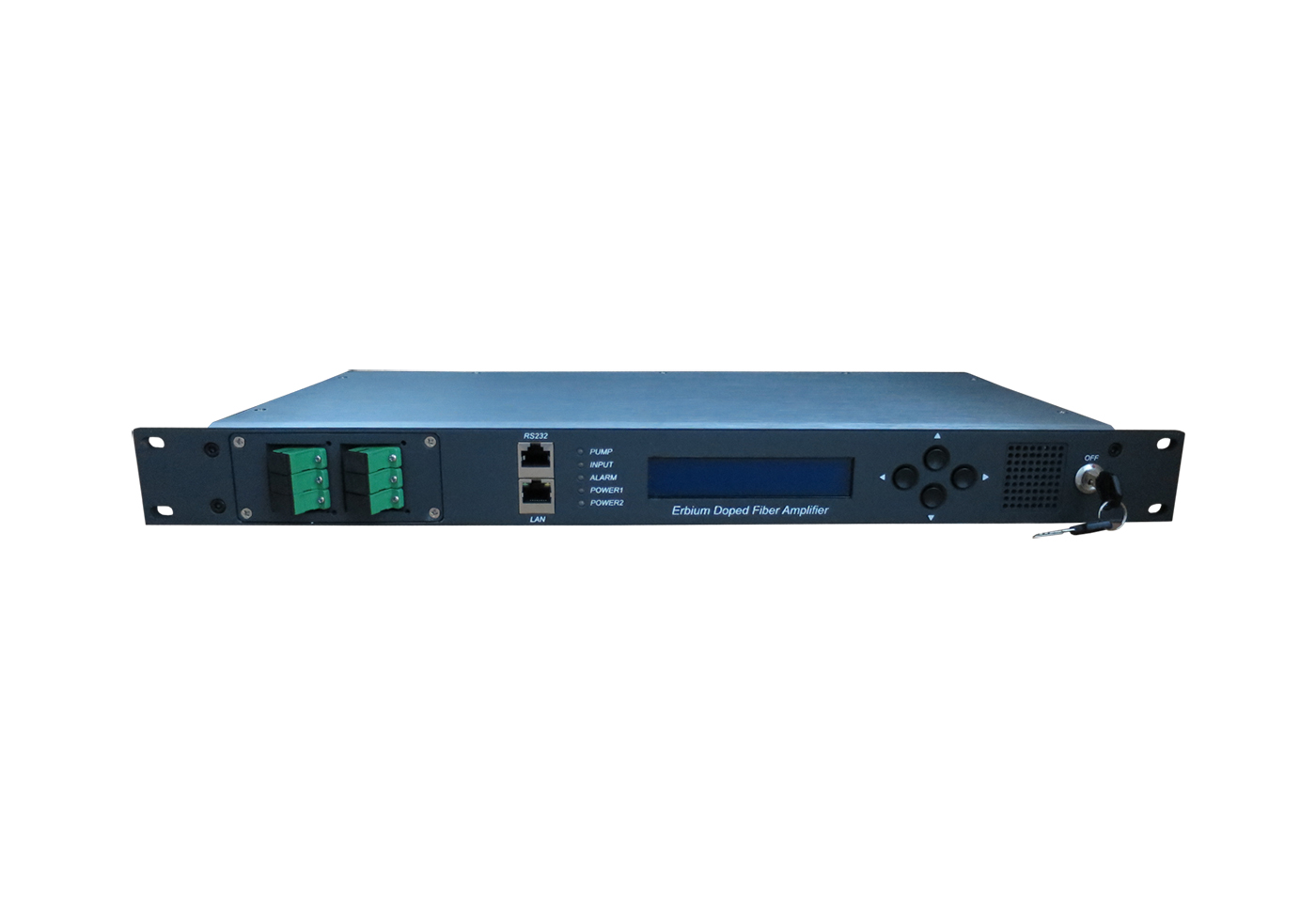

HWA4400|Zhejiang GT Lasers Tech. Co., Ltd.

GT LASERS HWA4400 series is a fixed gain EDFA which is specifically designed for C-Band DWDM optic transmission system, accord with various communication technology requirements of 44 channels DWDM system. It adopts nowadays excellent optical performance, advanced electronic control technology and complete software functionalities. Excellent total integration electronic transient control technology ensures amplifier to achieve the locking of optimal flat gain (OFG) in large dynamic input optical power range.

HWA4400 adopts the world's top class pump laser; advanced electronic circuit and low consumption design, greatly reduced the heat power consumption of complete equipment. Perfect FGC, ATC control, excellent design in the ventilation and heat-dissipation, ensures the long life and high reliability work of pump laser. The LCD at the front panel offers the work index and warning alarm of all equipment. RS232 and RJ45 offer serial communication and SNMP network management port. The laser will switch off automatically if optical power is missing, which offers security protection for the laser.

HWA4400 is suitable for DWDM booster amplifier (BA) and DWDM preamplifier (PA).

◉ Accord with the various communication technology requirements of 44 channels DWDM system

◉ Excellent optical performance

◉ Excellent total integration electronic transient control technology

◉ Optimal flat gain (OFG) locking (fixed gain mode)

◉ Excellent gain flatness feature (GF<1.0dB)

◉ Excellent Transient feature

◉ Low noise figure

◉ Various fixed gain available

◉ Various saturation output power available

◉ Latest low power consumption digital control technology

◉ The transient suppression of output optical power, to protect the optical device

◉ Carrier-class security and reliability, and network management function

◉ The LCD, LED at the front panel offers the work index and warning alarm of all equipment.

◉ Standard RS232 communication interface.

◉ 10/100M Ethernet interface supports SNMP and WEB remote network management.

◉ 1+1 powers supply back up optional, hot-plug function available

◉ Low power consumption

◉ Excellent P/P ratio in area

◉ C-Band44 channels DWDM booster amplifier
◉ C-Band 44 channels DWDM Preamplifier

◉ Long distance trunk network

◉ MAN or access network

◉ All kinds of SDH/PDH transmission system

◉ FTTx PON

Performance			Index			Supplement
Performance			Min.	Typ.	Max.	Supplement
Optical feature	Work wavelength range(λ)	(nm)	1529.16		1563.86	ITU 88CH
	No. of Working channel	(CH)	1	44
	Total input power range (Pi)	(dBm)	-30		+3
	Saturation output power(Po)	(dBm)	13		24	Enhanced version
	Optimal flat gain (OFG) 2)	(dB)	13		33	Enhanced version
	Gain flatness	(dB)		0.7	1.0	Value of Peak to Peak
	Noise figure	(dB)		4.7	5.5	Max gain
	Average gain accuracy	(dB)	-0.5		+0.5
	Gain stability	(dB)	-0.25		+0.25
	Polarization dependence gain (PDG)	(dB)			0.3
	Polarization dependence loss (PDL)	(dB)			0.3
	Polarization mode dispersion (PMD)	(ps)			0.3
	Input/output optic isolation	(dB)	30
	Pump leakage power	(dBm)			-30
	Echo loss	(dB)	45			UPC
	Echo loss	(dB)	55			APC
	Monitoring accuracy of Input optical power	(dB)	-0.5		+0.5
	Monitoring accuracy of Output optical power	(dB)	-0.5		+0.5
	Transient suppression time	(μs)			700	15dB Add/Drop
	Transient Overshoot	(dB)	-1.5		+1.5	15dB Add/Drop
	Transient gain changes	(dB)	-0.5		+0.5
	Wavelength range of optic management channel	(nm)	1500	1510	1520
General feature	SNMP network management interface		RJ45
	Communication interface		RS232
	Power supply	(V)	90		265	220VAC
	Power supply	(V)	30		72	-48VDC
	Power consumption	(W)			30
	Working temp.	(°C)	-5		+70
	Storage temp.	(°C)	-40		+85
	Working relative humidity	(%)	+5		+95
	Size (W)×(D)×(H)	(mm)	483×205×44

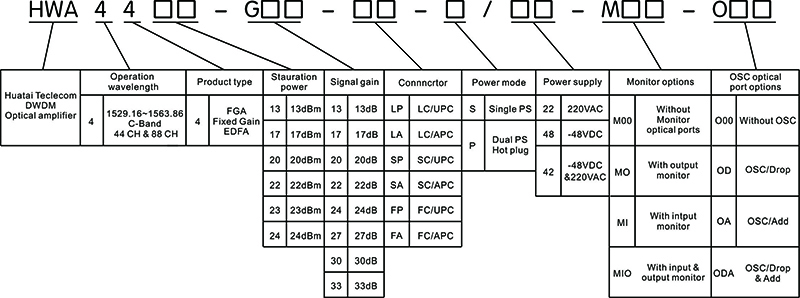

Model	Stauration power	Signal gain	Gain flatness	Monitor optical port mode	OSC Optical port mode
HWA4413-G口口	13dBm	13,17,20,22,24,27,30,33 dB Optional	<1.0	1, MO: With output monitoring 2, MI: With input monitoring 3, MIO: With input and output monitoring	1, OD: OSC / Drop 2, OA: OSC / Add 3, ODA: OSC / Drop & Add
HWA4417-G口口	17dBm
HWA4420-G口口	20dBm
HWA4422-G口口	22dBm
HWA4423-G口口	23dBm
HWA4424-G口口	24dBm
