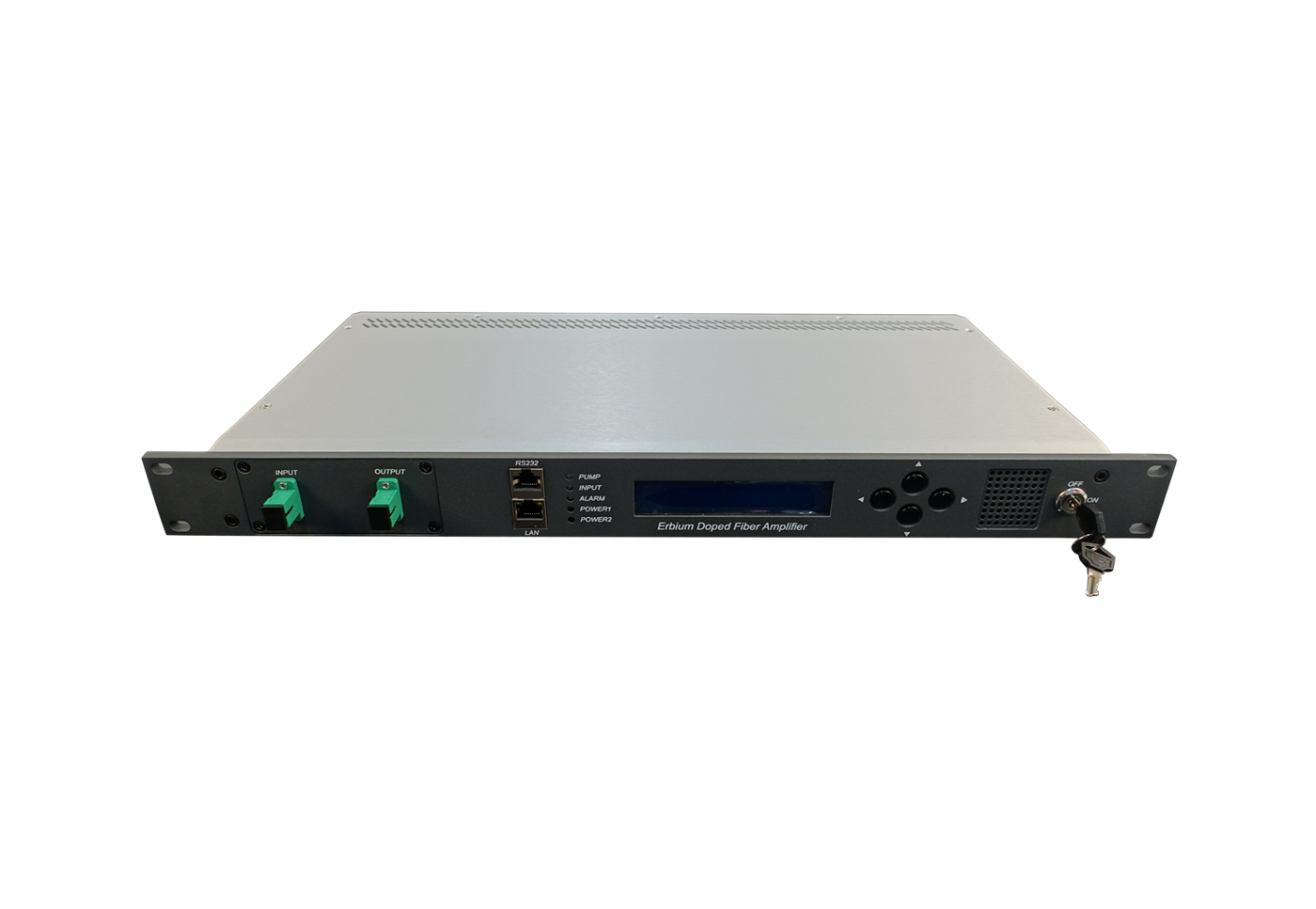

HSA4200

GT LASERS HSA4200 series is a line EDFA designed specifically for single wavelength optic transmission system. It is installed in the middle of the transmission line, replacing the traditional relay station, to compensate the optical power loss in the line and extend the signal transmission distance.

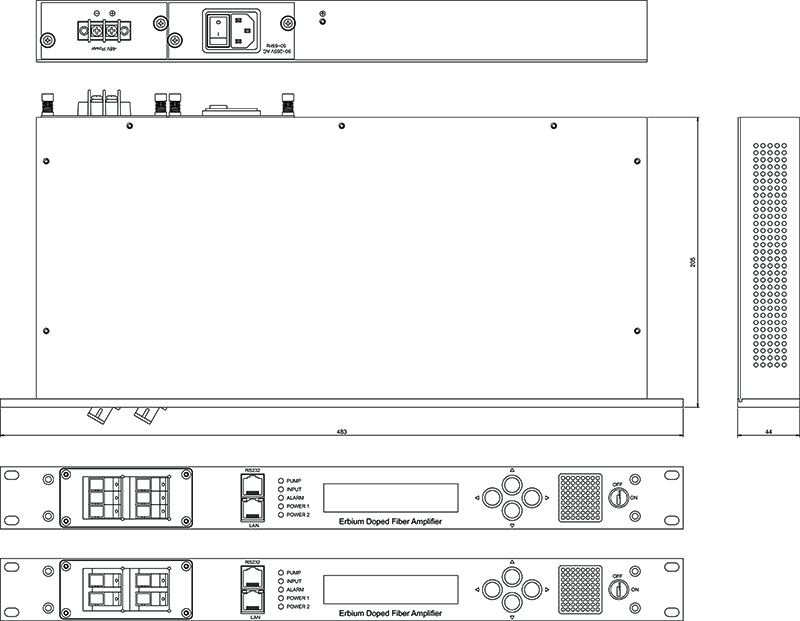

HSA4200 adopts the world's top class pump laser. Its excellent optic performance, advanced eletronic circuit and low consumption greatly reduced the heat power consumption of whole unit. Perfect FGC, ATC control, excellent design in the ventilation and heat-dissipation, ensures the long life and high reliability work of pump laser. The LCD at the front panel offers the work index and warning alarm of all equipment. RS232 and RJ45 offer serial commutation and SNMP network management port. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical port can be installed in the front panel, also can be in the back panel if customers specify.

◉ Long distance trunk network

◉ MAN or access network

◉ All kinds of SDH/PDH transmission system

◉ FTTx PON

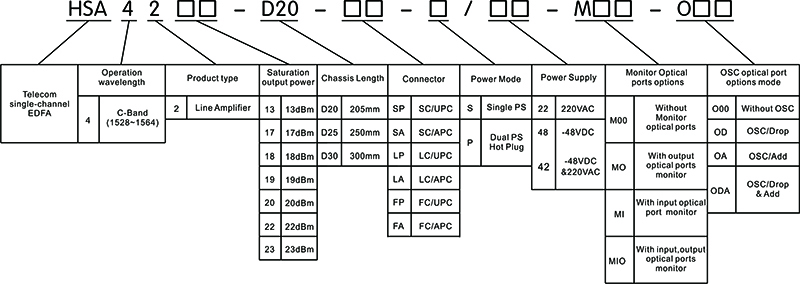

Note: 1), Monitor optical port mode options:
               1, MO (With output monitor optical port)
               2, MI (With input monitor optical port)
               3, MIO (With input and output monitor optical port)
         2), OSC Channel optical port light management:
               1, OD (OSC/Drop)
               2, OA (OSC/Add)
               3, ODA (OSC/Drop & Add)
