SBA4100-GM02

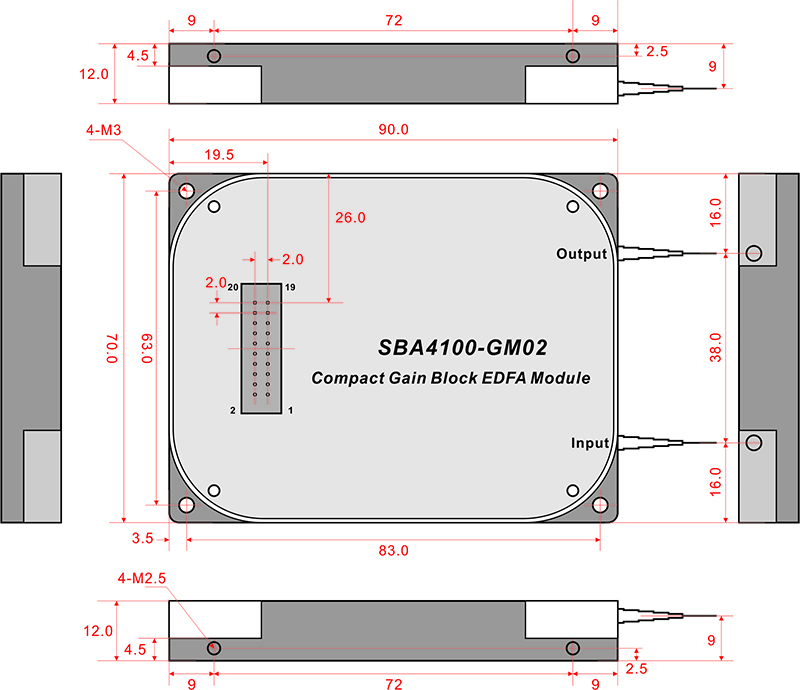

SBA4100-GM02 is a single channel gain block booster EDFA module, adopts 70×90×12mm MSA compact package. It is featured with high reliability, superior optical performance and compact reasonable configuration by Industrial standard, creating the most flexible and variable low-cost amplifier in the market. This module is suitable for multiple network application, especially the application that requires 40GB/S transmission speed.

SBA4100-GM02 single channel gain block booster EDFA module adopts the standard version of single channel and narrow bandwidth. The module uses high performance pump laser that with cooling function. A standard 20-PIN electric connector (HIROSE DF11-20DP-2DSA) allows the simple electric connection.

SBA4100-GM02 single channel gain block booster EDFA module, main installed behind the optical transmitter to increase the output power of the transmitter and extend the signal transmission distance.

◉ Metropolitan and access networks

◉ CATV

◉ Single-channel or DWDM sub-systems

◉ Optical Add/Drop and Cross-Connects

◉ Transmitter and Receiver Amplification

◉ Power equalization and flexible pre-emphasis
