RFoF-RT

The RFoF series delivers high-performance, cost-effective solutions for Wideband RF signal transmission over fiber. Designed to meet the demands of diverse application scenarios, these modules enable low-loss, high-linearity analog transport across extended distances.Leveraging expertise in microwave photonics, the company is committed to close collaboration with telecom operators, system integrators, and solution partners to jointly develop advanced RFoF products and customized solutions for evolving industry needs.

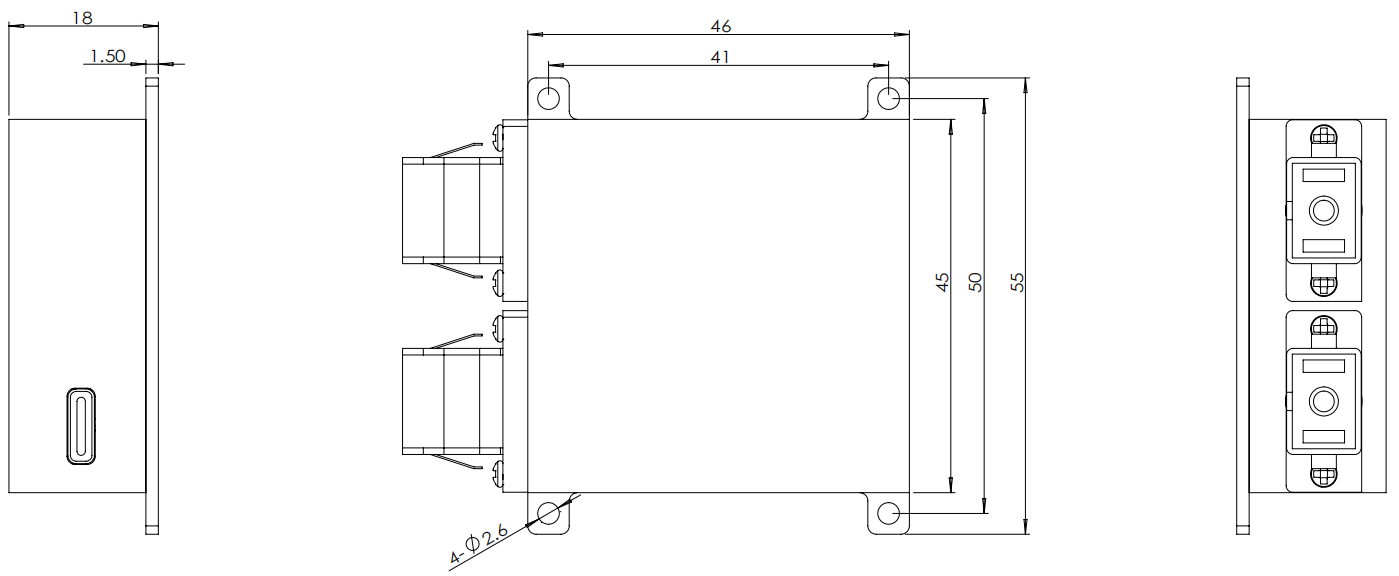

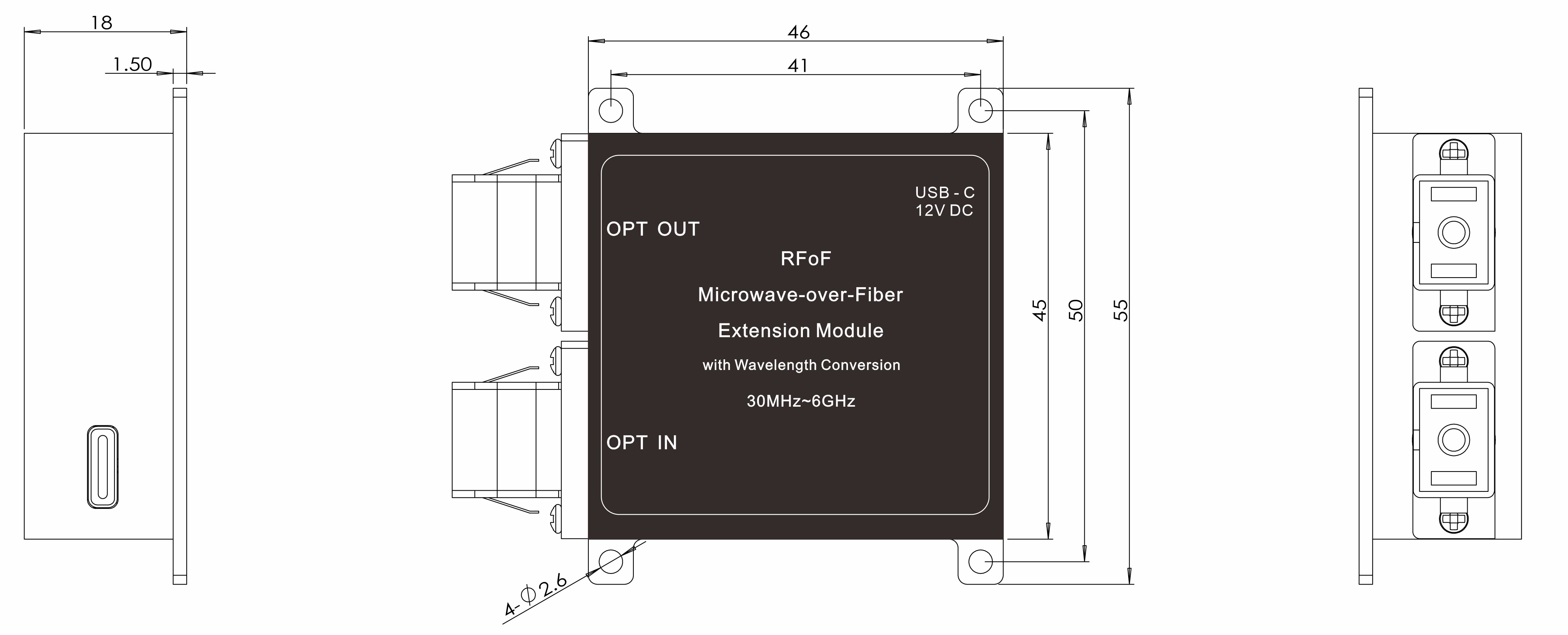

The RFoF-RT is a Wideband RF-over-fiber transceiver module supporting frequencies up to 12 GHz. It enables high-fidelity analog RF signal extension over fiber without requiring an optical amplifier (EDFA), and offers integrated wavelength conversion to standard channels such as 1550 nm for compatibility with WDM systems.By overcoming the distance and bandwidth limitations of coaxial cables, the RFoF-RT significantly enhances signal integrity, linearity, and system reliability. It is ideally suited for satellite communications, Beidou/GPS signal distribution, remote and distributed antenna systems, and long-haul analog RF transmission applications.

◉ Secure and encrypted RF communication

◉ OFDM and SDR (Software Defined Radio) optical transport

◉ Satellite ground station uplink/downlink

◉ Military radar and telemetry systems

◉ 4G/5G/WiMAX optical repeaters in tunnels and remote areas

◉ Long-haul analog RF links and GNSS repeater systems
