P9428

GT LASERS P9428, the operating bandwidth of 47 ~ 862MHz, is a low power, high performance, cost-effective triple play, FTTH CATV optical receiver. Products with high sensitivity optical receiver tube and Huatai special low noise matching circuit..

P9428 for Analog TV, in Pin =-9dBm when, Vo ≥ 79dBμV, CNR ≥ 44dB.

P9428 for Digital TV, in Pin =-16dBm when, Vo ≥ 74dBμV, MER ≥ 34dB.

P9428 for Digital TV, in Pin =-20dBm when, Vo ≥ 66dBμV, MER ≥ 27dB.

Triple play, fiber to the home, using the P9428 can save a lot of optical fiber amplifier power resources. For operators, can greatly reduce the cost of building the network.

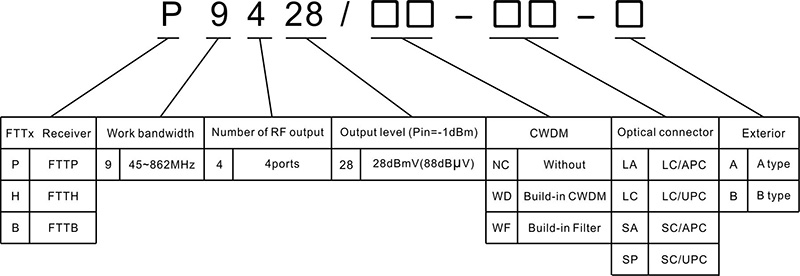

P9428optical port mode with following three types optional:

P9428       :operating wavelength 1260~1620nm.

P9428/WD: Built-in CWDM, suitable for single-fiber triple wavelength system, CATV

operating wavelength 1550nm, passwavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON.

P9428/WF: built-in 1310/1490nm filter,suitable for single-fiber triple wavelength system, CATV operating wavelength 1550nm.

◉ CATV FTTH

◉ Integration of three networks

◉ FTTH PON
