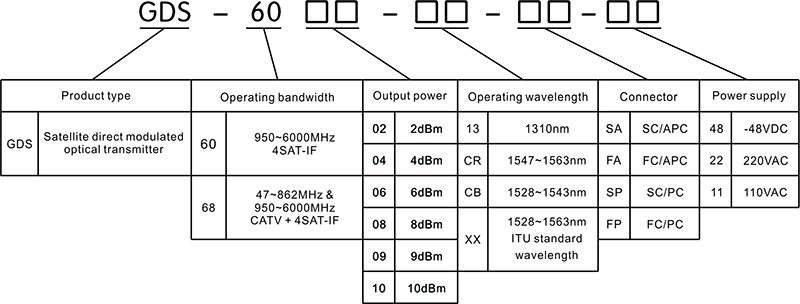

GDS-6000

GDS-6000 series micro-wave Direct Modulated Optical Transmitter, the working broadband is 950~6000MHz. By internal frequency overlay, can transmit 4 SAT-IF, 4 roads sat TV signals with high quality by one fiber.

It can supply high quality of satellite live TV service that come from maximum 4 satellites for many users by FTTH, FTTB.

GDS-6000 working wavelength is optional 1310nm or 1550nm. Choose 1550nm working wavelength can use EDFA & EYDFA to realize large area coverage. It is compatible with any FTTx PON technology. Realize multi-way satellite TV, internet integration of three networks.

GDS-6000 can choose 1550nm ITU-T standard wavelength to realize DWDM system application, can transmit 8 SAT-TV, 12 SAT-TV or 16 SAT-TV by one fiber.

SAT-IF input signal of GDS-6000 can come from 4 different satellites, and also can come from one satellite’s 4 SAT-IF signal. If adopt one satellite’s 4 SAT-IF, can adopt Quattro LNB 4 SAI-IF output tuner, such as LNB-2204.

GDS-6000 adopts high linearity broadband and microwave direct Modulated DFB laser. Excellent laser APC, ATC control, perfect SNMP, RS232 interface. High performance, high flexibility, high reliability and excellent performance price ratio. It is the ideal choice for subscribers.

◉ 950~6000MHz RF working bandwidth
◉ Transmit up to 4 satellites’ SAT-IF satellite TV signal by one fiber at same time
◉ 1550nm Can use EDFA,YEDFA, can compatible with any FTTx PON
◉ 1550nm can select ITU-T standard wavelength, suitable for DWDM systems applications
◉ 4 SAT-IF input interfaces, all can supply power to LNB, all with +18V or+13V power switching, can realize the choice of horizontal and vertical polarization
◉ 4 SAT-IF input interfaces, the 2 interfaces are High Band(22KHz), another 2 interfaces are Low Band(0Hz)
◉ High linear broadband micro-wave (microwave) direct modulated DFB Laser
◉ Laser APC,ATC
◉ Telecommunication-grade security and reliability and network management
◉ SNMP support remote management and control
◉ Excellent performance price ratio in this area
