GRS-6805|Zhejiang GT Lasers Tech. Co., Ltd.

GRS-6805, a kind of high performance 4-band SAT –IF O/E converter which is compatible with CATV (include DAB, DTT, FM). It adopts the technology of frequency division multiplexing, can receive the 950~5450MHz (4 SAT-IF overlay) and 47~862MHz (CATV) optical signal that transmitted by one fiber.

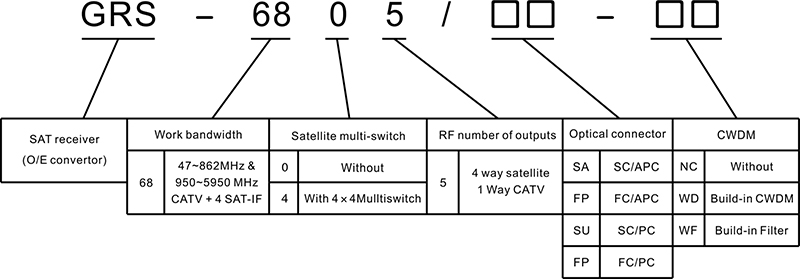

GRS-6805/WD, GRS-6805/WF, can be compatible with any FTTx PON, to realize internet, Full-Band SAT-TV & CATV Triple-ply network and FTTH

GRS-6805 the forepart of the satellite antenna adopt satellite full-channel overlay LNB, such as LNB2204 and HDS-55A optical transmitter

◉ Adopt one fiber to transmit Full-channels direct-broadcast satellite TV and CATV signal with high quality

◉ GRS-6805 (Can connect 5*N multi-way satellite switch, and serve for multi-users)

◉ FTTH for DBS

◉ Triple-play Overlay DVB-S

◉ 4 SAT - IF overlay/ cleavage overlay optical fiber links

Performance					Index			Supplement
Performance					Min.	TyP.	Max.	Supplement
Optic feature	CATV work wavelength			(nm)	1260		1620	GRS-6805
	CATV work wavelength			(nm)	1540		1563	GRS-6805/WF, GRS-6805/WD
	Pass wavelength			(nm)	1310,1490			GRS-6805/WD
	Channel isolation			(dB)	40
	Responsibility			(A/W)	0.85			1310nm
	Responsibility			(A/W)	0.9			1550nm
	Receiver power			(dBm)	-15
	Optical return loss			(dB)	40	45		FC/PC, SC/PC
	Optical return loss			(dB)	55	60		FC/APC, SC/APC
	Optical fiber connector				SC/APC			Optional FC/APC,SC/PC, FC/PC
Frequency feature	range Output frequency	VL		(MHz)	950		1950
		VH			1100		2150
		HL			950		1950
		HH			1100		2150
	Gain ripple across band			(dB)	-3.0		+3.0
	Gain ripple across 40MHz			(dB)	-0.5		+0.5
	Channel isolation			(dB)		30
	In band spurious power			(dB)	-25
	Out band spurious power			(dB)			-60
	Gain range			(dB)	-1.0		36
	Output level			(dBμV)	60		90
	Integrated phase noise			(dB)		4.0		1KHz~13KHz
	OIP3			(dB)	+10
	Output return loss			(dB)		10
	Output impedance			(Ω)		75
	RF number of connector					4
	output
	RF connector				F-Female
TV RF feature	frequency Working		CATV	(MHz)	47		862
			DAB		213		230
			DTT		470		854
			FM		88		108
	Flatness in band			(dB)	-0.75		+0.75
	Output level			(dBμV)		70		Pin=-12dBm
	AGC feature			(dB)	-1.0		+1.0
	Output impedance			(Ω)		75
	Number of output out			(ps)		1
	Return loss			(dB)	14
	RF port				F-Female
	Analog TV feature		Test channel	(CH)	59CH(PAL-D)
			OMI	(dB)		3.8
			CNR1	(dB)		53.5		Pin=0dBm
			CNR2	(dB)		45.2		Pin=-8dBm
			CTB	(dB)			-65	Pin:+3~-8dBm
			CSO	(dB)			-62	Pin:+3~-8dBm
	feature Digital TV		OMI	(dB)		4.3
			MER	(dB)	30			Pin=-12dBm
			BER	(dB)			1.0E-9	Pin:+3~-13dBm
General feature	Power supply (DC)			(V)		+18
	Power consume			(mA)			300
	External power supply input voltage			(V)	90		265
	Operating temp.			(°C)	-30		+60
	Storage temp.			(°C)	-40		+70
	Size			(mm)	143×167×27			(W)x(D)x(H)
