SBA4100-FM01

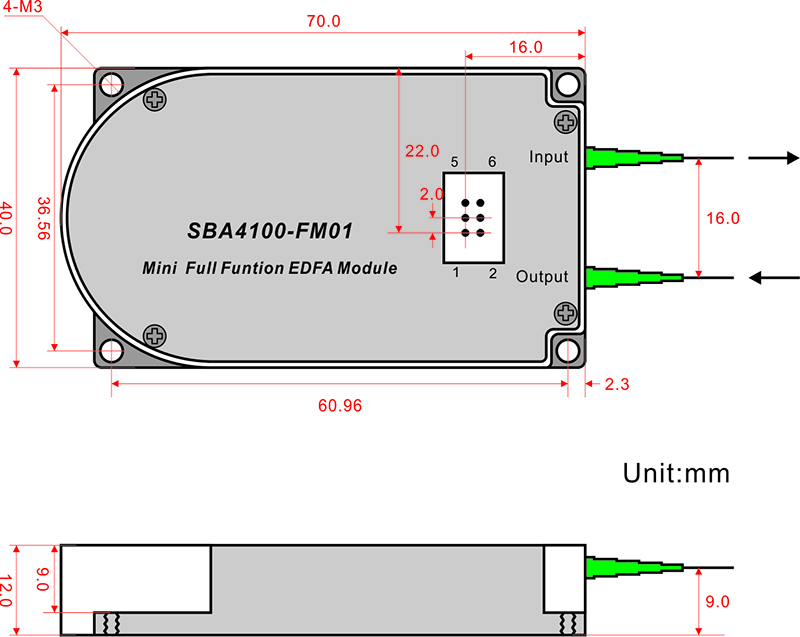

SBA4100-FM01 is a full-function single channel booster EDFA module with digital control electronics, adopts subminiature 40×70×12mm compact package. The module uses high performance non-cooling pump laser, combined with artistic package and best optic performance, creating the best flexible and variable low-cost amplifier in the market. This module is suitable for multiple network application, especially the application that requires 40GB/S transmission speed.

SBA4100-FM01 full-function EDFA module adopts the standard version of single channel and narrow bandwidth. A standard 6-PIN electric connector (HIROSE DF11-6DP-2DSA) allows the simple electric connection.

SBA4100-FM01 full-function booster EDFA module, main installed behind the optical transmitter to increase the output power of the transmitter and extend the signal transmission distance.

◉ Metropolitan and access networks

◉ CATV

◉ Single-channel or DWDM sub-systems

◉ Optical Add/Drop and Cross-Connects

◉ Transmitter and Receiver Amplification

◉ Power equalization and flexible pre-emphasis
