SBA4100-FM02

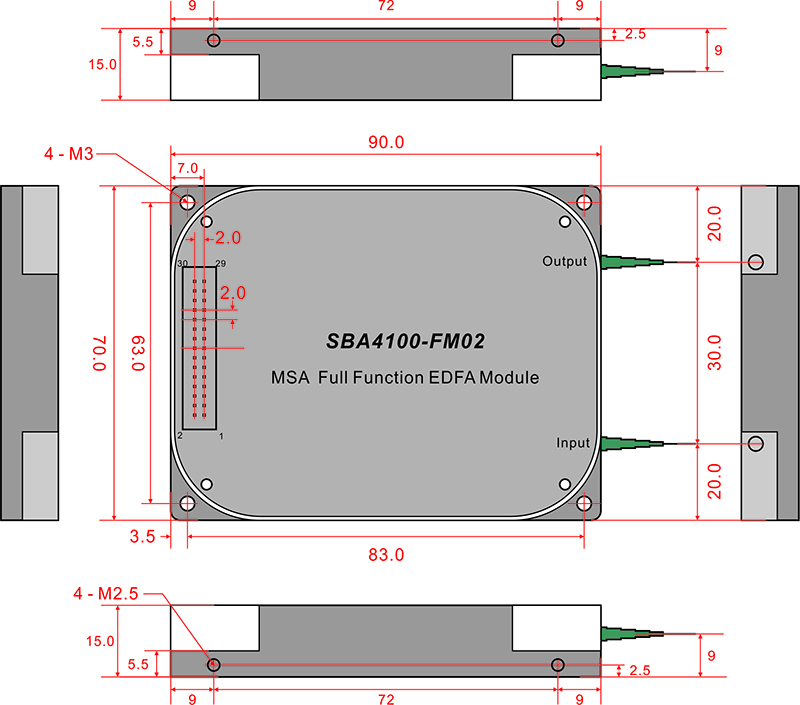

SBA4100-FM02 is a full-function optical booster with digital control electronics, adopts 70×90×15mm MSA compact package. It is featured with high reliability, superior optical performance and compact reasonable configuration by Industrial standard, creating the most flexible and variable low-cost amplifier in the market. This module is suitable for multiple network application, especially the application that requires 40GB/S transmission speed.

SBA4100-FM02 full-function optical booster module adopts the standard version of single channel and narrow bandwidth. The module uses high performance pump laser that with cooling function (also can use high performance non-cooling pump laser). A standard 30-PIN electric connector (HIROSE DF11-30DP-2DSA) allows the simple electric connection.

SBA4100-FM02 full-function booster EDFA module, main installed behind the optical transmitter to increase the output power of the transmitter and extend the signal transmission distance.

◉ Metropolitan and access networks

◉ CATV

◉ Single-channel or DWDM sub-systems

◉ Optical Add/Drop and Cross-Connects

◉ Transmitter and Receiver Amplification

◉ Power equalization and flexible pre-emphasis

Note: 1. Power supply voltage optional DC+5V
